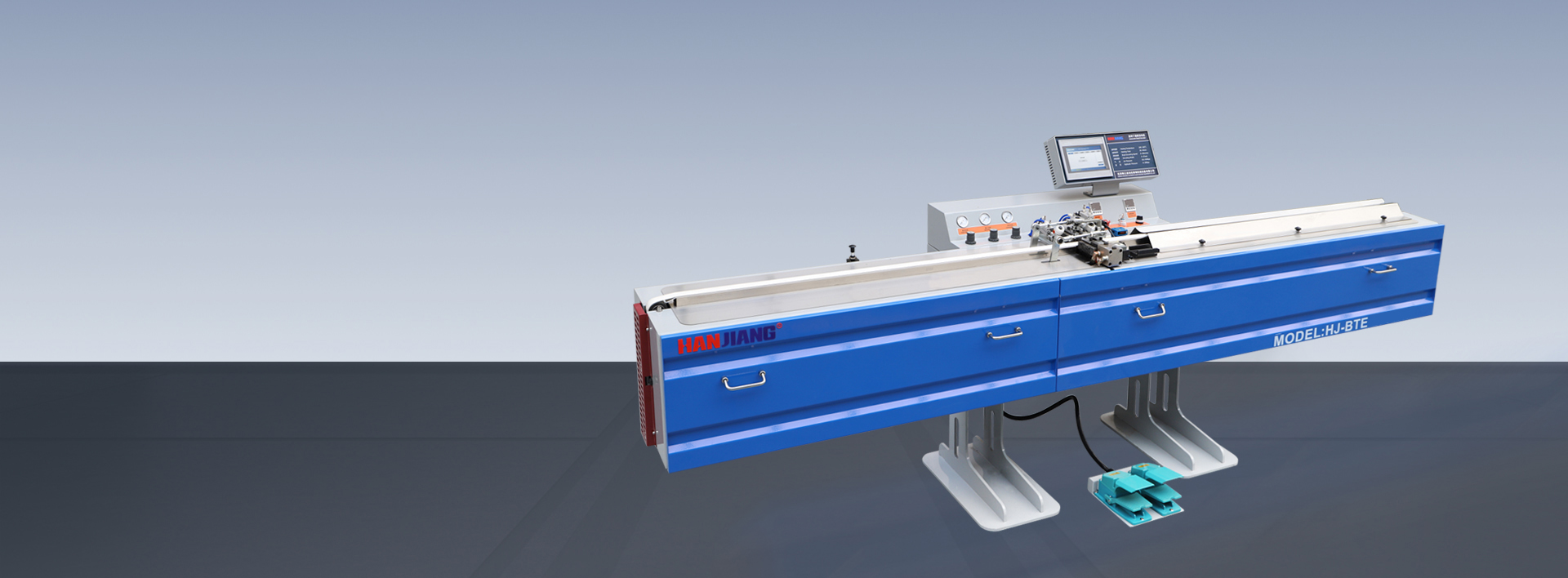

Product Introduction

Feature

  • PLC control system with touch screen interface
  • Numerical control of extruding start and stop time
  • Automatic displaying function when out of butyl
  • Two heating systems for butyl cylinder and nozzle
  • Nozzle height adjustable
  • Pre-heating system
  • Available for curved spacer extruding
  • Nozzle adjust automatically with different spacer width

Technical Data

  • Heating temperature:100℃-160℃
  • Heating time:30-40min
  • Butyl extruding speed:0-30m/min
  • Extruding width:4-20mm
  • Power:1P+N 220V 50Hz 3kW
  • Air pressure:0.7MPa
  • Hydraulic pressure:0-20MPa
  • Working height:800mm
  • Machine size:3000(L)×600(W)×950 (H) mm
